Model No: LANDTOP-MS

MS series 3 Phase Aluminum Housing Induction Motor

Delivery :

EXW, FOB, CFR, CIF

minimum order :

1 set

Supply Ability :

10000set / Month

Stock Time :

25-40Day

Quantity :

add to cart

Contact Now

•MS series motor which adopting the latest design and high quality meterial is conformed to the IEC Standard. The efficiency of motor meets Eff2 standard in Europe and Eff1 standard if request. The motor with removable feet is made of aluminum alloy die casting. User could mount it with various mounting type. The housing is aluminum.
MS series Aluminium housing motors are acknowledged that having a good fame for quality and reliability, they are suitable for driving machines which do not have special requirement, such as machine tools, pumps, blowers, etc.
- Superior finish – Externally Ventilated – Light weight construction – Top mounted terminal box

Type	Output		Current	Power	Eff	Speed	Tstart/Tn	Ist/In	Tmax/Tn
Type	kW	HP	(A)	factor	(%)	(r/min)	Tstart/Tn	Ist/In	Tmax/Tn

MS561-2	0.09	0.12	0.3	0.76	60	2750	2.3	6	2.4
MS562-2	0.12	0.16	0.37	0.78	63	2750	2.3	6	2.4
MS631-2	0.18	0.24	0.53	0.8	65	2780	2.3	6	2.4
MS632-2	0.25	0.33	0.69	0.81	68	2780	2.3	6	2.4
MS711-2	0.37	0.5	0.99	0.81	70	2800	2.3	6	2.4
MS712-2	0.55	0.75	1.4	0.82	73	2800	2.3	6	2.4
MS801-2	0.75	1	1.83	0.83	75	2825	2.3	6	2.4
MS802-2	1.1	1.5	2.58	0.84	77	2825	2.3	6.5	2.4
MS90S-2	1.5	2	3.43	0.84	79	2840	2.3	6.5	2.4
MS90L-2	2.2	3	4.85	0.85	81	2840	2.3	6.5	2.4
MS100L-2	3	4	6.31	0.87	83	2880	2.3	7	2.4
MS112M-2	4	5.5	8.12	0.88	85	2890	2.3	7	2.4
MS132S1-2	5.5	7.5	11	0.88	86	2900	2.3	7	2.4
MS132S2-2	7.5	10	14.9	0.88	87	2900	2.3	7	2.4

MS561-4	0.06	0.08	0.27	0.68	50	1300	2.2	5.5	2.3
MS562-4	0.09	0.12	0.36	0.7	54	1300	2.2	5.5	2.3
MS631-4	0.12	0.16	0.44	0.72	57	1330	2.2	5.5	2.3
MS632-4	0.18	0.24	0.62	0.73	60	1330	2.2	5.5	2.3
MS711-4	0.25	0.33	0.79	0.74	65	1360	2.2	5.5	2.3
MS712-4	0.37	0.5	1.12	0.75	67	1360	2.2	5.5	2.3
MS801-4	0.55	0.75	1.57	0.75	71	1380	2.3	6	2.4
MS802-4	0.75	1	2.05	0.76	73	1380	2.3	6	2.4
MS90S-4	1.1	1.5	2.89	0.77	75	1390	2.3	6	2.4
MS90L-4	1.5	2	3.7	0.79	78	1390	2.3	6	2.4
MS100L1-4	2.2	3	5.16	0.81	80	1410	2.3	7	2.4
MS100L2-4	3	4	6.78	0.82	82	1410	2.3	7	2.4
MS112M-4	4	5.5	8.82	0.82	84	1435	2.3	7	2.4
MS132S-4	5.5	7.5	11.8	0.83	85	1445	2.3	7	2.4
MS132M-4	7.5	10	15.6	0.84	87	1445	2.3	7	2.4

MS711-6	0.18	0.24	0.74	0.66	56	900	2	5.5	2.2
MS712-6	0.25	0.33	0.95	0.68	59	900	2	5.5	2.2
MS801-6	0.37	0.5	1.3	0.7	62	900	2	5.5	2.2
MS802-6	0.55	0.75	1.79	0.72	65	900	2	5.5	2.2
MS90S-6	0.75	1	2.29	0.72	69	910	2.1	5.5	2.2
MS90L-6	1.1	1.5	3.18	0.73	72	910	2.1	5.5	2.2
MS100L-6	1.5	2	3.95	0.76	76	940	2.1	5.5	2.2
MS112M-6	2.2	3	5.57	0.76	79	940	2.2	6.5	2.3
MS132S-6	3	4	7.4	0.76	81	960	2.2	6.5	2.3
MS132M1-6	4	5.5	9.75	0.76	82	960	2.2	6.5	2.3
MS132M2-6	5.5	7.5	12.9	0.77	84	960	2.2	6.5	2.3

MS801-8	0.18	0.25	0.88	0.61	51	630	1.8	4	1.9
MS802-8	0.25	0.34	1.15	0.61	54	640	1.8	4	1.9
MS90S-8	0.37	0.5	1.49	0.61	62	660	1.8	4	1.9
MS90L-8	0.55	0.75	2.18	0.61	63	660	1.8	4	2
MS100L1-8	0.75	1	2.17	0.67	71	690	1.8	4	2
MS100L2-8	1.1	1.5	2.39	0.69	73	690	1.8	5	2
MS112M-8	1.5	2	4.5	0.69	75	690	1.8	5	2
MS132S-8	2.2	3	6	0.71	78	710	1.8	6	2
MS132M-8	3	4	7.9	0.73	79	710	1.8	6	2

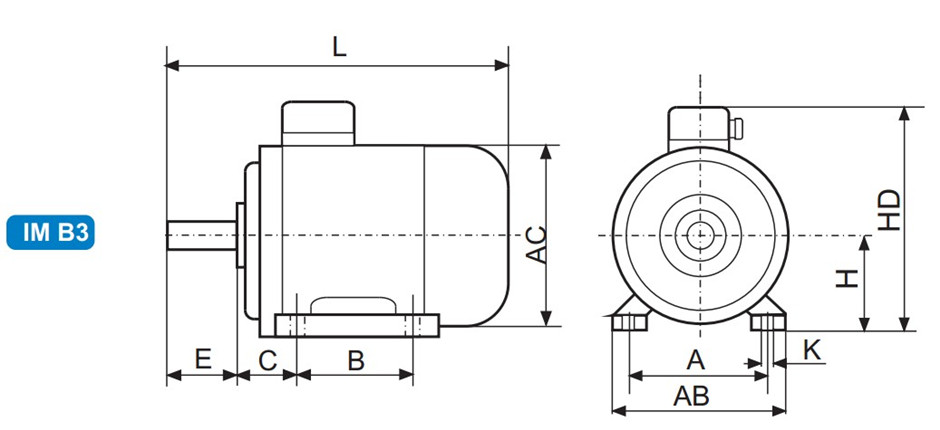

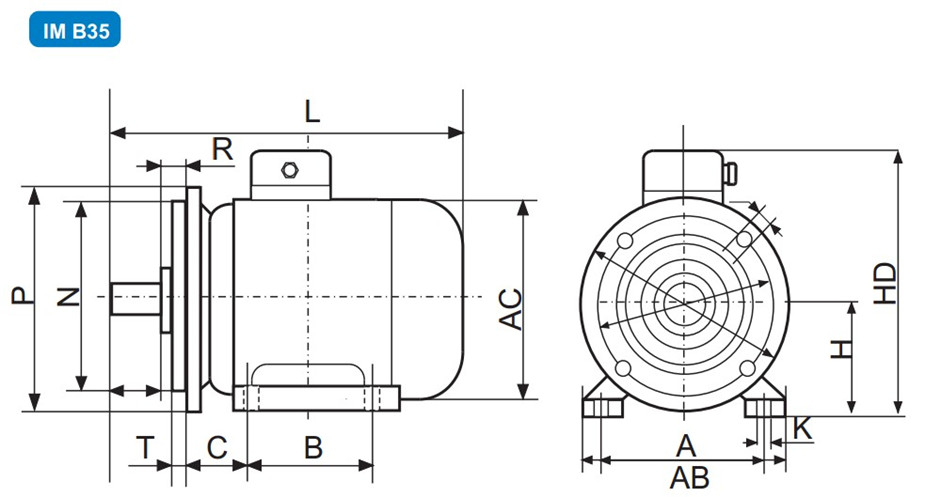

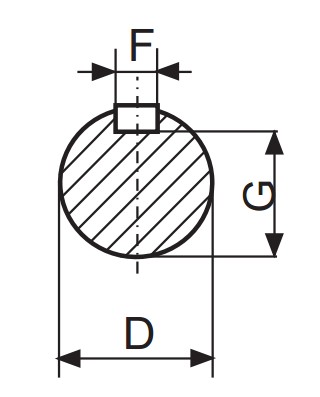

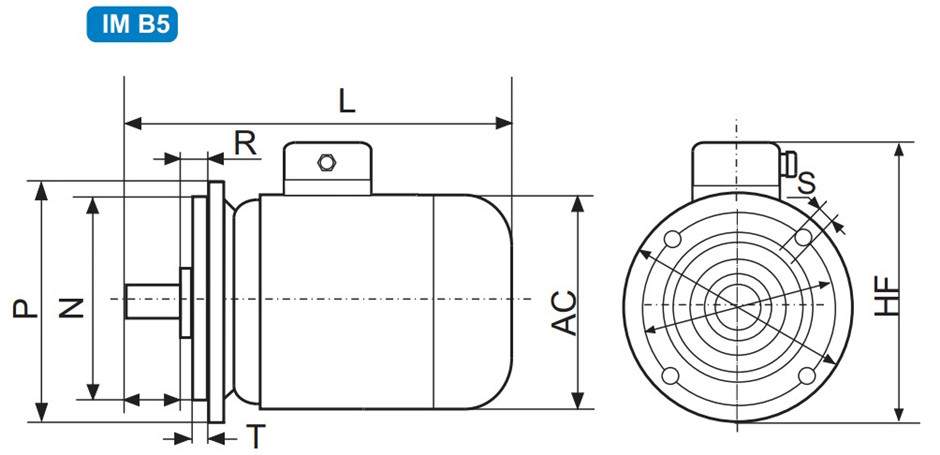

Frame	Installation Size									IMB14						IMB5						Dimensions
No	A	B	C	D	E	F	G	H	K	M	N	P	R	S	T	M	N	P	R	S	T	AB	AC	AD	HD	L
56	90	71	36	9	20	3	7.2	56	5.8	65	50	80	0	M5	2.5	98	80	120	0	7	3	110	120	110	145	195
63	100	80	40	11	23	4	8.5	63	7	75	60	90	0	M5	2.5	115	95	140	0	10	3	130	130	115	165	230
71	112	90	45	14	30	5	11	71	7	85	70	105	0	M6	2.5	130	110	160	0	10	3.5	145	145	125	190	255
80	125	100	50	19	40	6	15.5	80	10	100	80	120	0	M6	3	165	130	200	0	12	3.5	165	165	135	210	295
90S	140	100	56	24	50	8	20	90	10	115	95	140	0	M8	3	165	130	200	0	12	3.5	185	145	145	230	335
90L	140	125	56	24	50	8	20	90	10	115	95	140	0	M8	3	165	130	200	0	12	3.5	185	145	145	230	360
100L	16	140	63	28	60	8	24	100	12	130	110	160	0	M8	3.5	215	180	250	0	15	4	215	170	170	270	380
112M	190	140	70	28	60	8	24	112	12	130	110	160	0	M10	3.5	215	180	250	0	15	4	240	180	180	290	400
132S	216	140	89	38	80	10	33	132	12	165	130	200	0	M10	4	265	230	300	0	15	4	275	195	195	325	475
132M	216	178	89	38	80	10	33	132	12	165	130	200	0	M10	4	265	230	300	0	15	4	275	195	195	325	515
